AD8184ANZ
Manufacturer:
Analog Devices
Mfr.Part #:
AD8184ANZ
Datasheet:
Description:

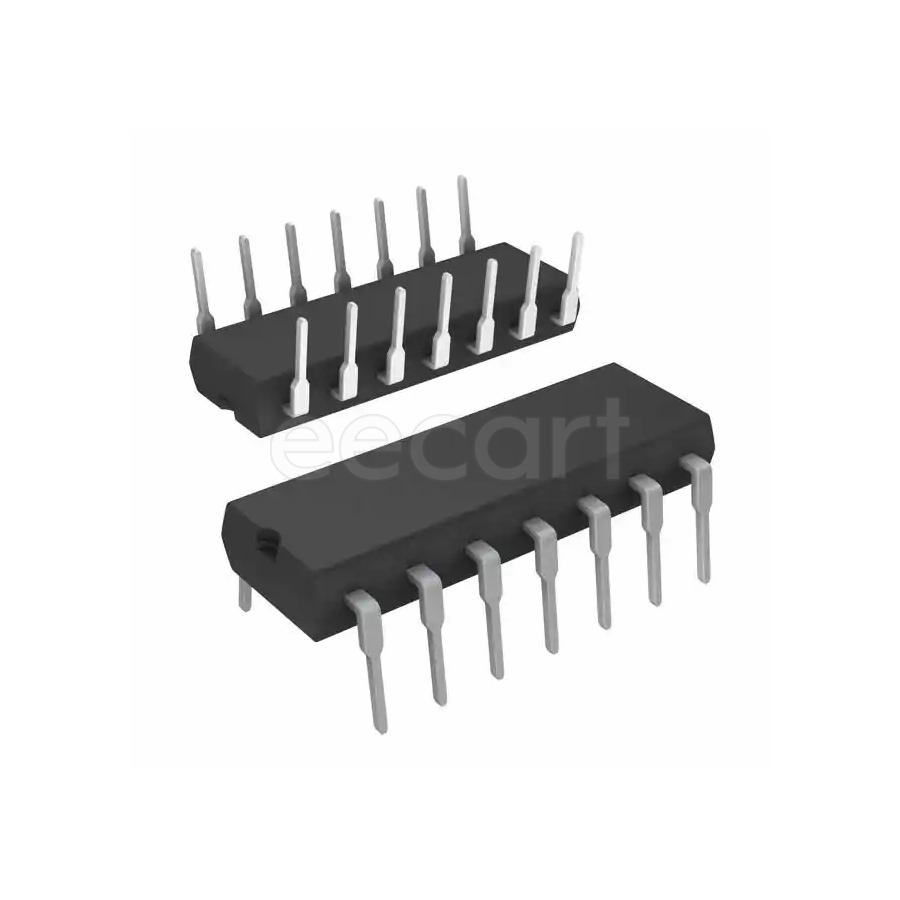

Multiplexer Switch ICs PDIP-14 Through Hole Number of Channels:1 2 kΩ 12 ns 22 ns
| Parameter | Value |
|---|---|
| Length | 20.19 mm |
| Width | 7.11 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 14 |
| Height | 5.33 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | |
| REACH SVHC | No SVHC |
| Interface | Parallel |
| Number of Circuits | 1 |
| Bandwidth | 700 MHz |
| Operating Supply Voltage | 5 V |
| Max Power Dissipation | 52 mW |
| Max Supply Voltage | 6 V |
| Min Supply Voltage | 4 V |
| Power Dissipation | 52 mW |
| Number of Channels | 1 |
| Number of Bits | |
| Turn-Off Delay Time | 22 ns |
| -3db Bandwidth | 700 MHz |
| Propagation Delay | |
| High Level Output Current | |
| Low Level Output Current | |
| Logic Function | Multiplexer |
| Number of Inputs | 4 |
| Supply Type | Dual |
| Throw Configuration | 4PST |
| Number of Outputs | 1 |
| Dual Supply Voltage | 5 V |
| Max Dual Supply Voltage | -5 V, 5 V |
| Min Dual Supply Voltage | -5 V, 5 V |
| Logic Family | |
| Configuration | 1 x 4:1 |
| Turn-On Delay Time | 12 ns |
| On Resistance (RON) | 2 kΩ |
Stock: 34
Distributors
pcbx
pcbxUnit Price$5.98964
Ext.Price$5.98964
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.98964 | $5.98964 |
| 10 | $4.67219 | $46.72190 |
| 25 | $4.23532 | $105.88300 |
| 50 | $3.96510 | $198.25500 |
| 100 | $3.71210 | $371.21000 |
| 300 | $3.58335 | $1075.00500 |
| 500 | $3.45904 | $1729.52000 |
| 1000 | $3.41630 | $3416.30000 |
